Main features:
1. Tractor frame adopts thickened steel plate, the structure is reasonable and durable.
2. Small body, flexible steering and easy operation.
3. The traction gearbox and the implements gearbox are equipped separately to reduce the engine load.
4. Total 8 gears, 3+1, with high and low speed.

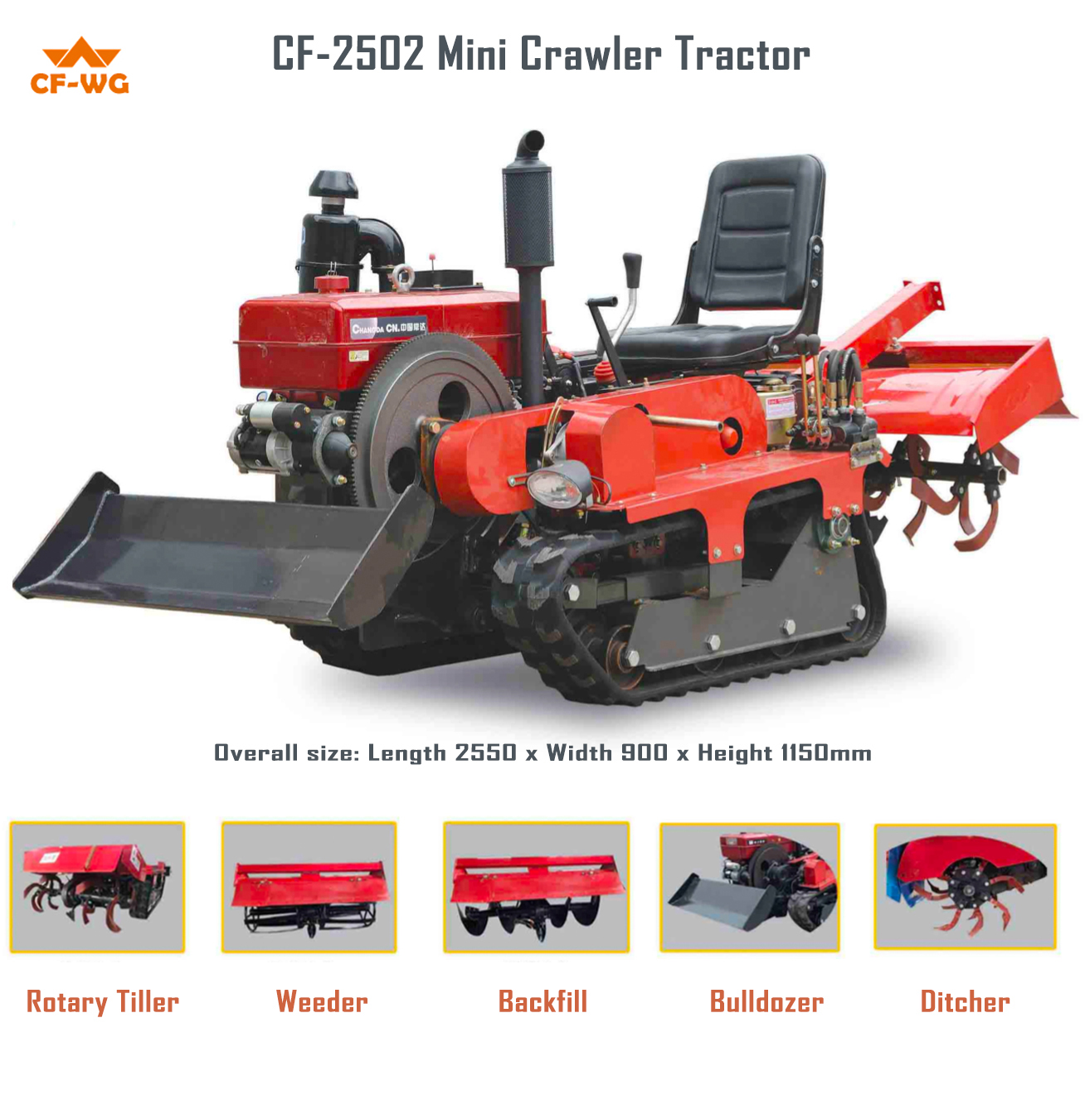

5. 5 sets implements are equipped with the machine: Rotary tiller, Weeder, Backfiller, Bulldozer and Ditcher.
6. The machine is very suitable for orchard greenhouses field working

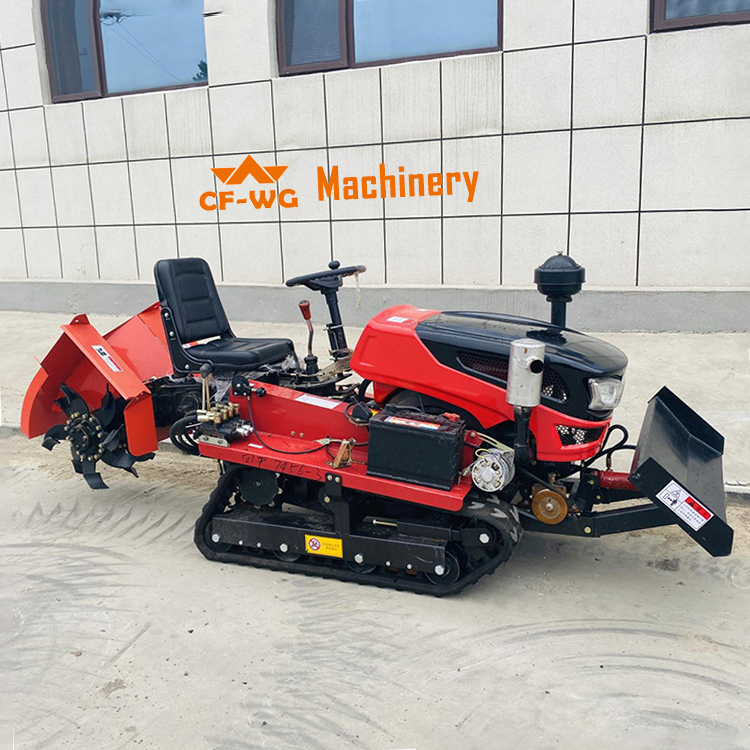

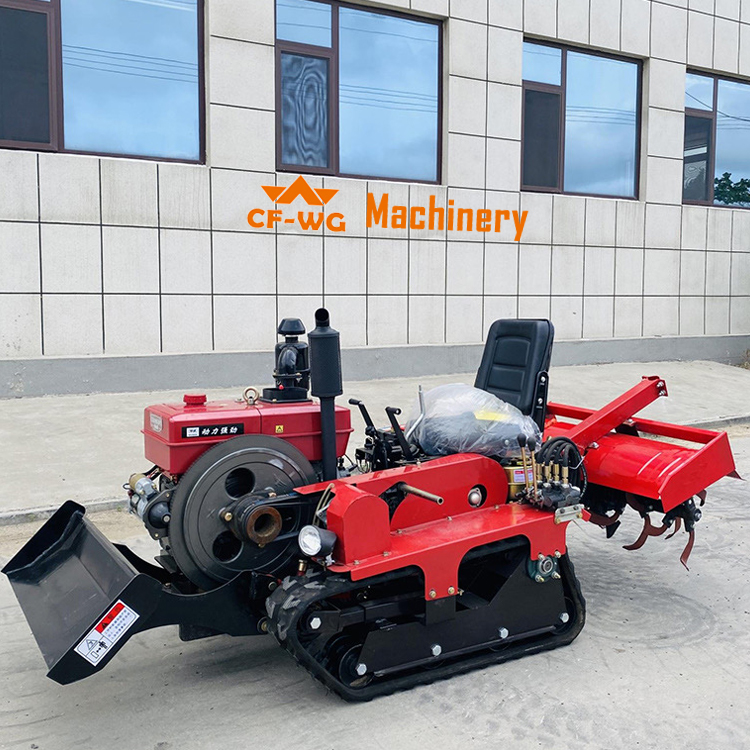

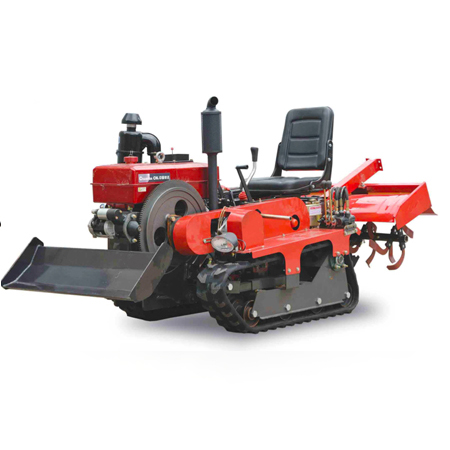

CF-2502 mini crawler tractor Specification
| Engine Power | 25HP | Drive mode | Gear Drive |
| Rated Rotation | 2200r/min | Start mode | electric |
| overall size | 2550x900x1150mm | Work efficiency | 0.2-0.35 acre/H |
| Weight | 700KG | Fuel consumption | 1L/0.15 acre approx |
| Shift | 3 +1 high/Low Speed total 8 | Walking Speed | 2km/H |
| Dozer blade | Width: 90cm | Rotary Tiller | width:90cm |
| Weeder | Width: 90cm | Ditcher | width: 20 cm Depth: 20cm |
| Ridger | Backfill width: 90cm |
For more details, please contact below:
Kim Yan (Sales Director)
Email: sales@cf-optics.com Tel:+8618917582141
