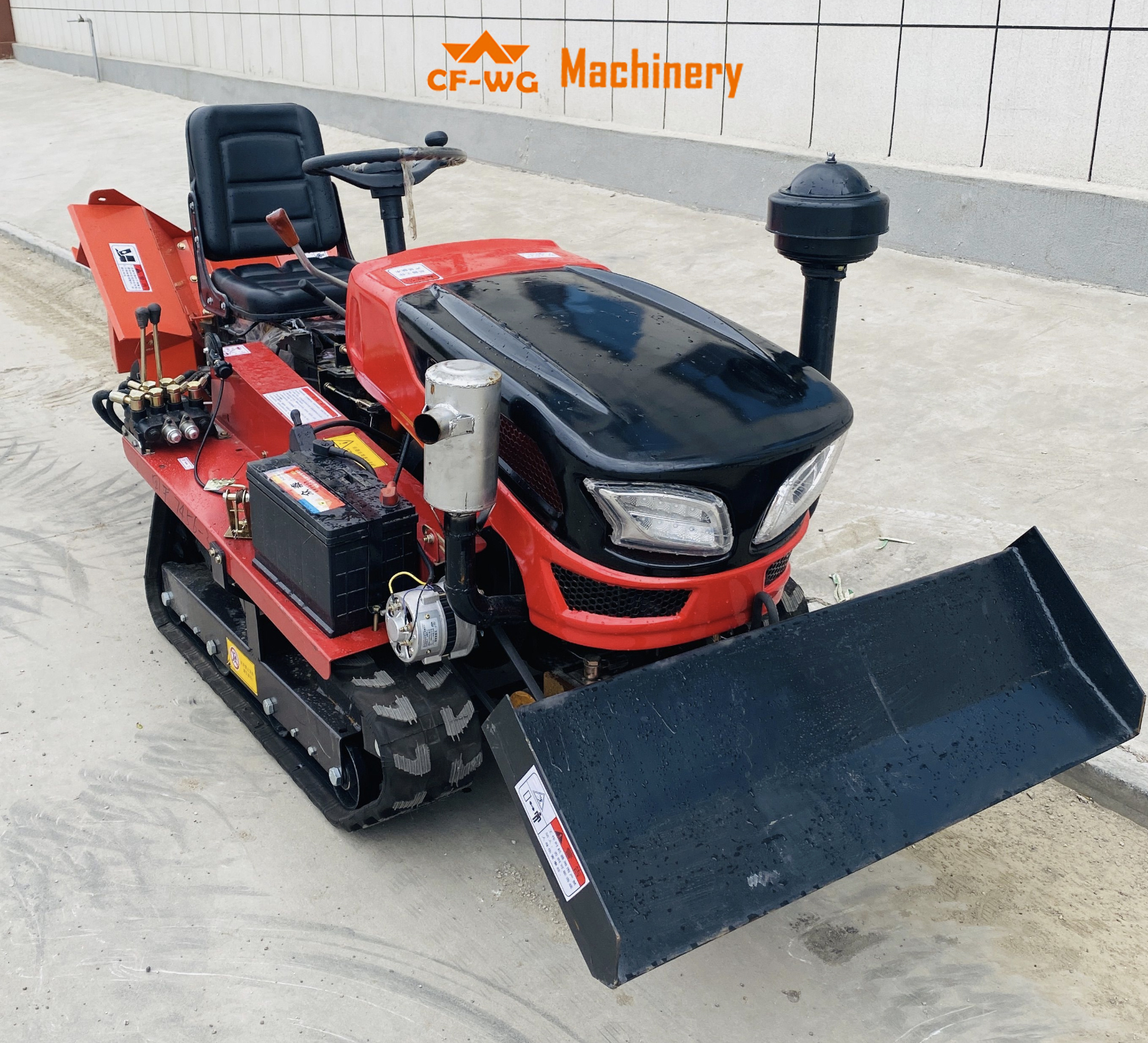

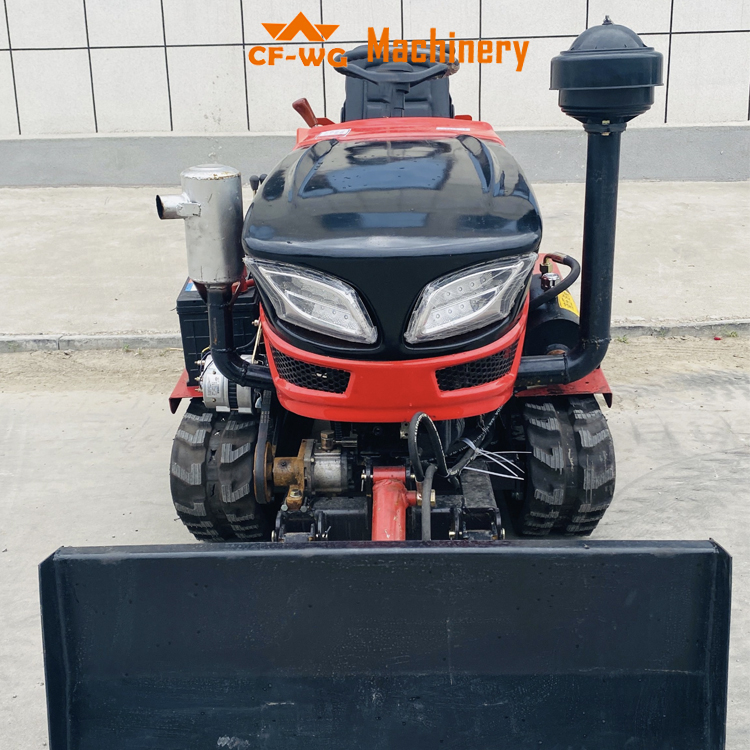

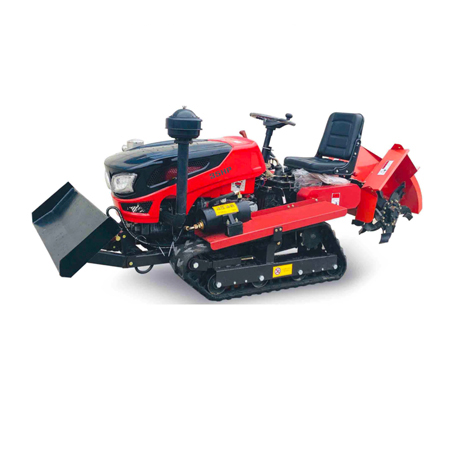

A multifuctional tractor is good passability Rubber crawler tractor used in orchards and mountains. It is suitable for use in plains, mountains, hills, rice fields, orchards, meadows and pastures. The support of the appropriate agriculture implements can complete various field operations such as plowing, plowing, hoeing, sowing and fertilizing, harvesting, etc., and can also carry out transport and fixed operations.
Main features:
1. Tractor frame adopts thickened steel plate, the structure is reasonable and durable.
2. Small body, flexible steering and easy operation.
3. The traction gearbox and the implements gearbox are equipped separately to reduce the engine load.
4. Total 8 gears, 3+1, with high and low speed.

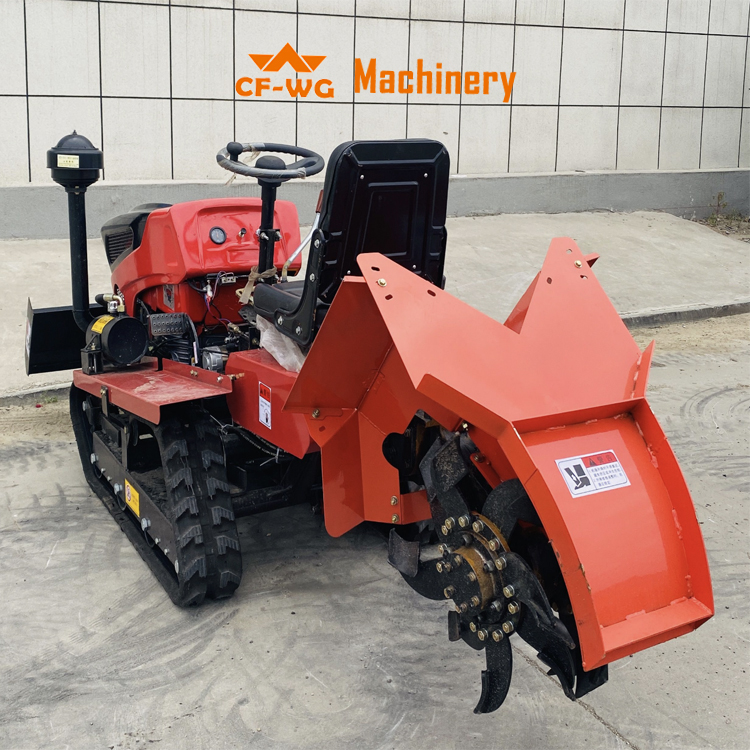

5. 5 sets implements are equipped with the machine: Rotary tiller, Weeder, Backfiller, Bulldozer and Ditcher.
6. Rubber track grounding area is larger with stronger adhension, which reduce rollover.
7. The machine is very suitable for orchard greenhouses field working.

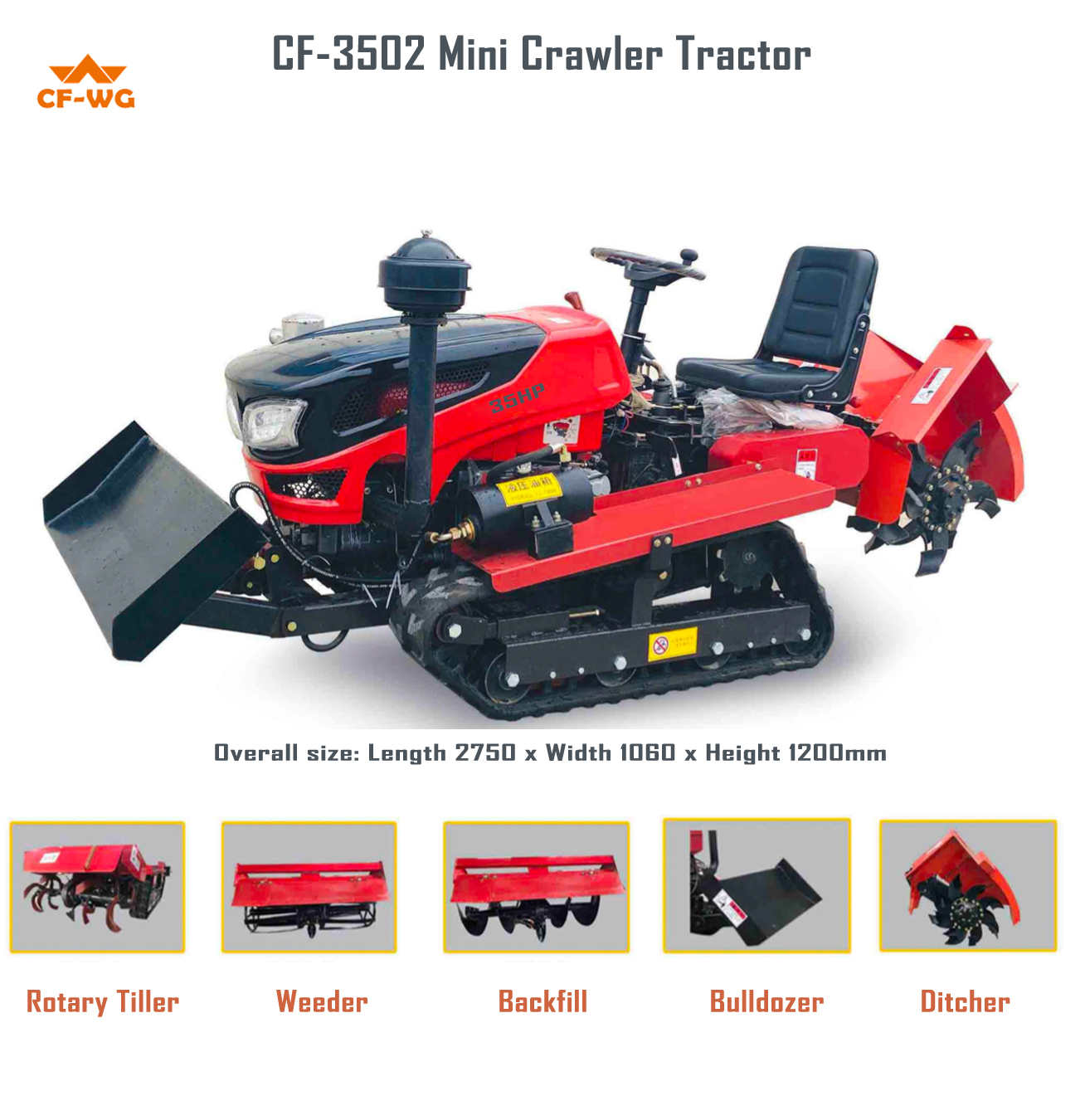

CF-3502 mini crawler tractor Specification
| Engine Power | 35HP | Drive mode | Gear Drive |
| Rated Rotation | 2200r/min | Start mode | electric |
| overall size | 2750*1060*1200mm | Work efficiency | 0.2-0.35 acre/H |
| Weight | 750KG | Fuel consumption | 1L/0.15 acre approx |
| Shift | 3 forward 1 reverse, high/Low Speed total 8 | Walking Speed | 5km/H |
| Dozer blade | Width: 100cm | Rotary Tiller | width: 100c Depth: 25cm |
| Weeder | Width: 100cm | Ditcher | width: 35 cm, Depth: 35cm |
| Ridger | Backfill width: 100cm |
